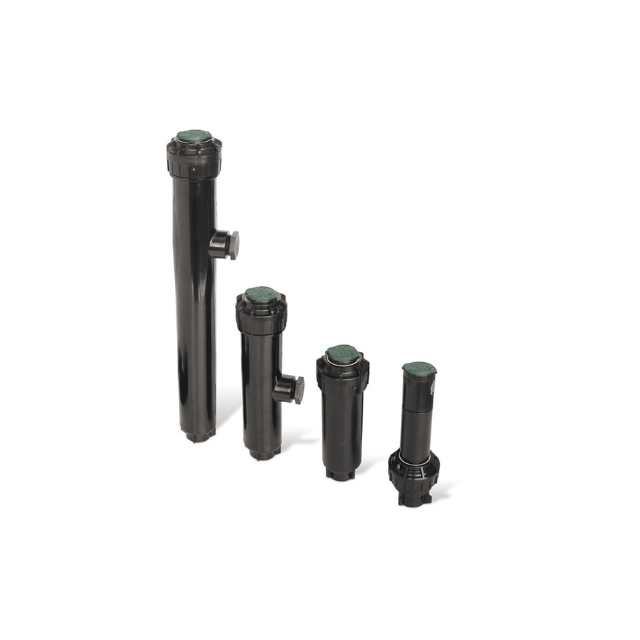

RAIN BIRD™ 5006 Plus Rotary Pop Up Sprinkler with SAM & PRS 40°-360° Part/Reverse

Gear driven adjustable arc pop up sprinkler

150mm pop up height with stainless steel riser

Watering arc is screw adjustable from 40° - 360° Watering radius (dependent on water pressure) is 5.7m - 15.2m

Adjustment by a combination of top screw and nozzle selection. Supplied complete with nozzle set. ¾" BSPF bottom threaded inlet

For suitable connectors and pipe see either Spiral Barbed, or 13mm Barbed sections

SAM (seal-a-matic) check valve fitted to prevent drain back

Built in pressure regulator 3.1 bar for optimum performance

It is recommended that the flow and pressure be measured for your tap water supply as this does vary

We also suggest that the complete system be tested on the surface before burying/final installation

Download manual
