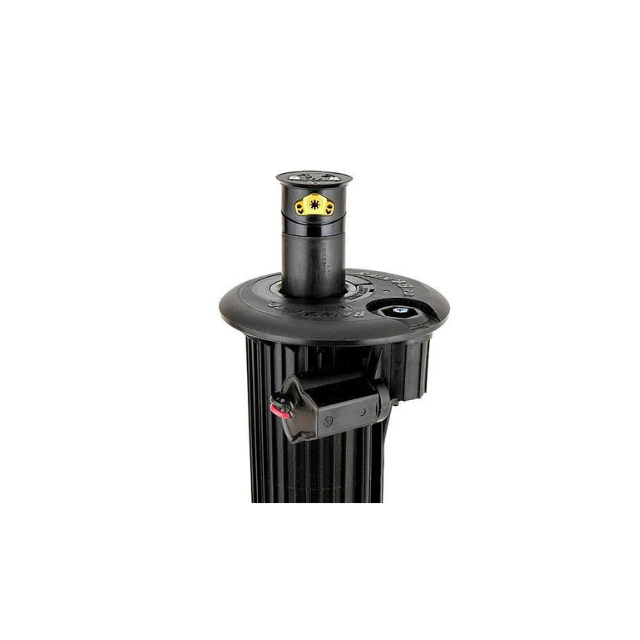

Rain Bird Eagle 752 Series

Introducing the all-new Rain Bird 952 Series Rotor, the most innovative and robust model to date, delivering superior performance, simplicity, and convenience.

Performance
The self-adjusting stator automatically adjusts the flow to control rotation speed, optimizing performance and ensuring consistent rotation.

Simplicity
Rapid-Adjust Technology allows for easy arc adjustments with a simple turn of a screw, while the MemoryArc® feature enables swift transitions between full- and part-circle operation.

Convenience
Streamline your inventory with a rotor that combines the functions of two, simplifying maintenance and reducing stock requirements.

Specifications

Radius:  70’ - 101’ (21.3m - 31.8m)
Flow Rate: 19.7 to 54.5 gpm (1.24 to 3.44 l/s)
(4.43 to 12.38 m3/h)
Arc: Full-circle 360°, Adjustable 30° to 345°
Models: E: Electric IC: Integrated Control SAM: Stopamatic
Maximum Inlet Pressure: Models E and IC: 150 psi (10.3 bars) | Model SAM: 100 psi (6.9 bars)
Pressure Regulation Range: Models E, IC: 60 to 100 psi (4.1 to 6.9 bars)
Factory Pressure Settings: Models E and IC available in 70 and 80 psi
(4.8 and 5.5 bars)
Dimensions: Body Height: 13.4” (34.0 cm) | Pop-Up Height to Mid-Nozzle: 2.6” (6.6 cm) | Top Diameter: 7.0” (17.8 cm)
